High quality and fully equipped professional glasswasher for bars, resturants and other catering establishments. This item is fitted with a

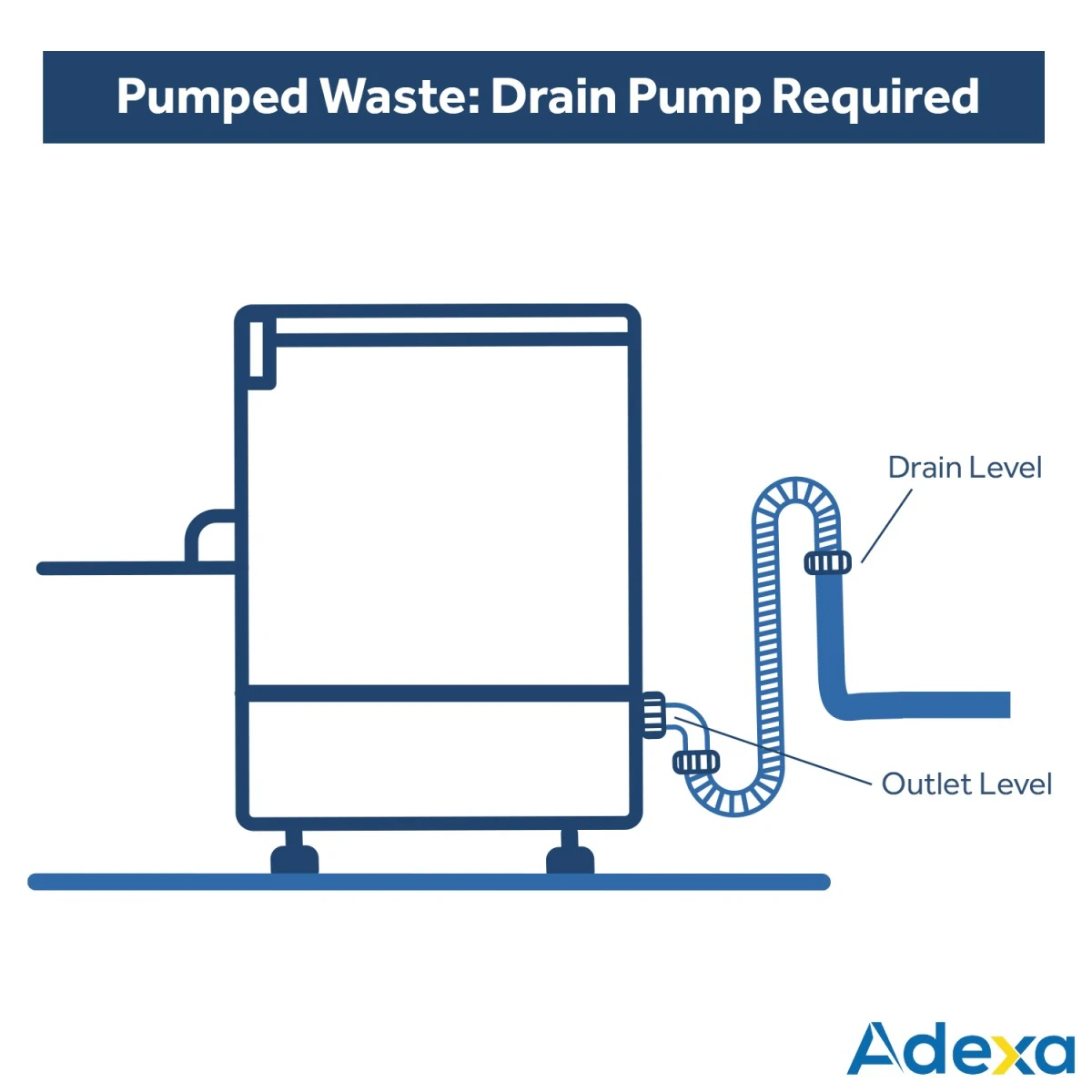

drain pump for waste disposal. The pump is activated at the end of the washing
cycle to release dirty water from the machine. A drain pump is essential if the
drain is level or higher than the water outlet of the machine.
- Single-skinned cabinet with double-skinned door
- Made in Italy
- With drain pump
- With detergent dosing pump
- Built-in water softener
- Low noise
- Wash pump fixed directly to the tank
- Easy-clean-filter system
- Stainless-steel wash arm and two rinse arms of composite material, all independent and rotary
- Tank and door made of stainless steel AISI 304.
- Adjustable rinse aid dosing unit
- Micro security door
- Electromechanical control panel
- Cycle: 120 sec (30 baskets/h)
- Basket size: 400 x 400 mm
- Wash pump power: 0.17 kW
- Wash pump capacity: 109 litres/min
- Element power (tank): 1.6 kW
- Element power (boiler): 2.8 kW
- Water supply temperature: +55°C
- Water supply pressure: 200 – 400 kPa
- Water supply hardness max: min. 7 max. 12°f
- Washing temperature: +55°C
- Rinsing temperature: +85°C
- Capacity tank: 14litres
- Capacity boiler: 2.7 litres
- Water consumption per cycle: 2.4 litres
- Sound emission: 48 dB(A)
- Total power: 2.97 kW
- Power supply: 230V / 1N / 50Hz
Included accessories

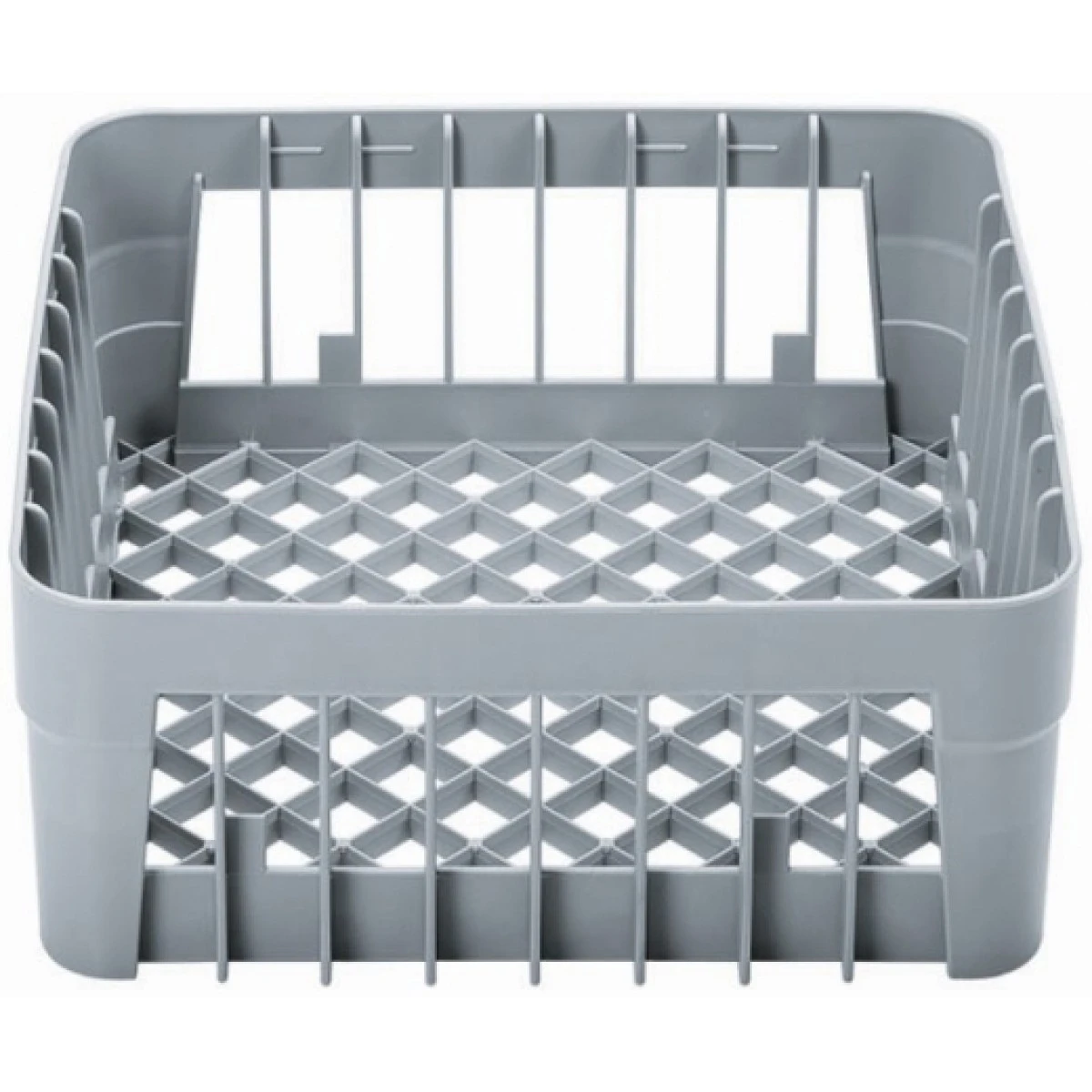

- Baskets; 1 universal basket, 1 cutlery rack
- Hoses (1 for each); Water connection, Drain, Transparent rinsing product
Documents
- Click here to download User Manual
- Click here to download Instructions for Adjusting Rinse Aid and Detergent Dispensers
