Quick Bake Convection
Bake faster and more evenly with Quick Bake Convection.

Quick Boil Burner
Get meals on the table faster with our powerful 17K BTU burner.

Fast Steam Cleaning Option
A 30-minute light oven cleaning that’s chemical-free, odor-free, and fast.

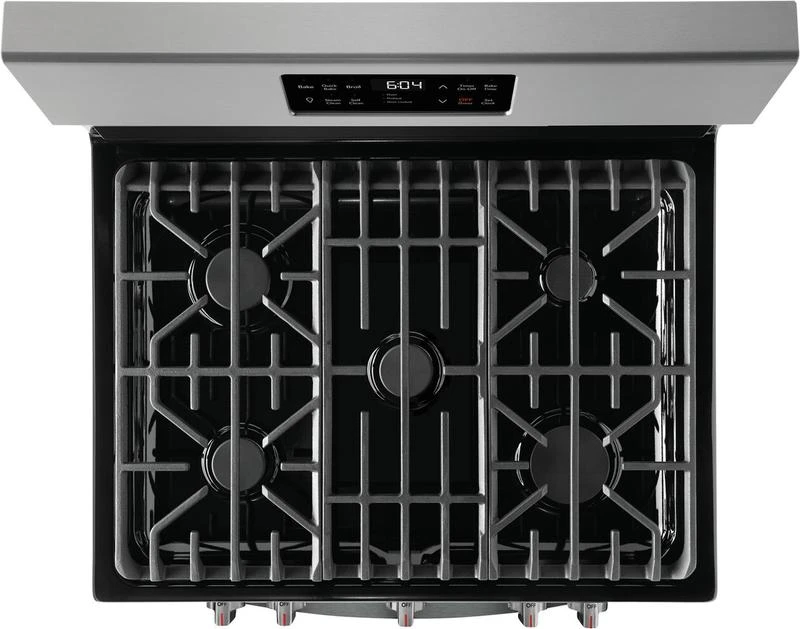

Continuous Corner-to-Corner Grates
Move heavy pots and pans without lifting with continuous, corner-to-corner grates.

Low Simmer Burner
Perfect for cooking delicate foods and sauces.

One-Touch Self Clean
Your oven cleans itself – so you don’t have to. Self clean options available in 2, 3 and 4-hour cycles.

Smudge-Proof® Stainless Steel
Resists fingerprints and cleans easily.

Sabbath Mode (Star-K® Certified)
Quick Bake Convection
Bake faster and more evenly with Quick Bake Convection.
Quick Boil Burner
Get meals on the table faster with our powerful 17K BTU burner.
Fast Steam Cleaning Option
A 30-minute light oven cleaning that’s chemical-free, odor-free, and fast.
Continuous Corner-to-Corner Grates
Move heavy pots and pans without lifting with continuous, corner-to-corner grates.
Low Simmer Burner
Perfect for cooking delicate foods and sauces.
One-Touch Self Clean
Your oven cleans itself – so you don’t have to. Self clean options available in 2, 3 and 4-hour cycles.
Smudge-Proof® Stainless Steel
Resists fingerprints and cleans easily.
Features
- Quick Bake Convection
- Quick Boil Burner
- Fast Steam Cleaning Option
- Continuous Corner-to-Corner Grates
- Low Simmer Burner
- One-Touch Self Clean
- Smudge-Proof® Stainless Steel
- Sabbath Mode (Star-K® Certified)
| Product Line | Gas Range |
| Power Type | NG |
| Size | 30″ |
| Installation Type | Free-Standing |
| Factory | Springfield |
| Color | Stainless Steel |
| Cooktop | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Cooktop Performance | |
| Right Front Element Burner | 17000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Left Front Element Burner | 9500 BTU |
| Left Rear Element Burner | 14000 BTU |
| Center Element Burner | 9500 BTU |

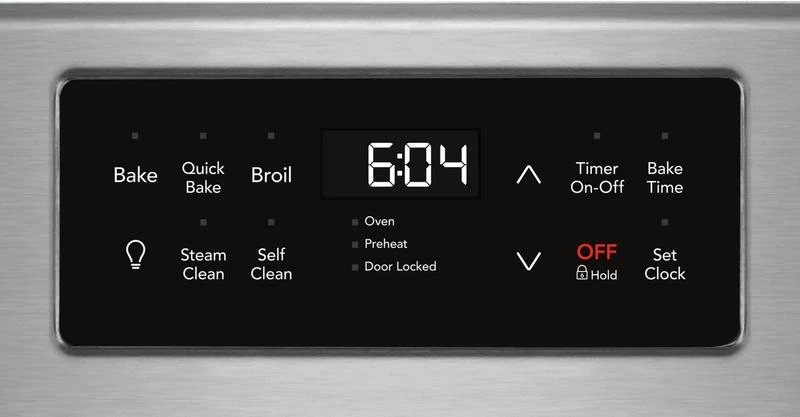

| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Cancel | Yes |
| Door Lock | Yes |
| Off | Yes |
| Preheat | Yes |
| Probe | No |
| Quick Bake | Yes |
| Self Clean | Yes |
| Steam Clean | Yes |
| Oven | |
| Bake Element | 18000 BTU |
| Number of Rack Positions | 6 |
| Rack Position Type | Nickel Ladder |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Drawer | |
| Drawer Type | Storage |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Display | |
| Control Location | Rear |
| Display Interface Color | White |
| Display Type | Membrane |
| Exterior | |
| Cooktop Finish | Color Coordinated |
| Drawer Finish | Color Coordinated |
| Exterior Finish | Smudge-Proof® Stainless Steel |
| Knob Material | Plastic |
| Manifold Finish | Color Coordinated |
| Dimensions and Volume | |
| Height | 48 1/2″ |
| Width | 30″ |
| Depth | 25 3/4″ |
| Depth With Door 90° Open | 46 5/8″ |
| Depth With Handle | 29 1/4″ |
| Oven Interior Height | 18 5/8″ |
| Oven Interior Width | 24 3/8″ |
| Oven Interior Depth | 19 1/8″ |
| Oven Capacity | 5 Cu. Ft. |
| Electrical Specifications | |
| Minimum Circuit Required | 5 Amps |
| Voltage Rating | 120 V |
| Installation | |
| Adjustable Leveling Legs | Yes |
| General Specifications | |
| Product Weight | 194.75 lbs |
| Prop 65 Label | Yes |
| Warranty – Labor | 1 Year |
| Warranty – Parts | 1 Year |
| Safety Certifications and Approvals | |
| CSA Listed | Yes |
Quick Specs
-
Appearance
-
Type:
Range
-
Style:
Free Standing
-
Fuel:
Gas
-
Dimensions
-
Width:
30″
-
Height:
48.5″
-
Depth:
25.75″
-
Size
-
Nominal Width:
30″
-
Features
-
Energy Star Rated:
No
-
Downdraft Ventilation:
No
-
Hood Recommended:
Yes
-
Cooktop Features
-
Dual Fuel:
No
-
Burner Type:
Sealed
-
Oven Features
-
Self Clean:
Yes
-
Convection:
Yes
-
Drawer:
Storage
-
First Oven:
5.0 cu. ft.
-
Hidden Bake Element:
No
-
Continuous Grate:
Yes
-
Extras
-
Sabbath Mode:
Yes
-
WiFi Connected:
No
