Fit Guarantee
This gas range will fit your existing 30″ cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details

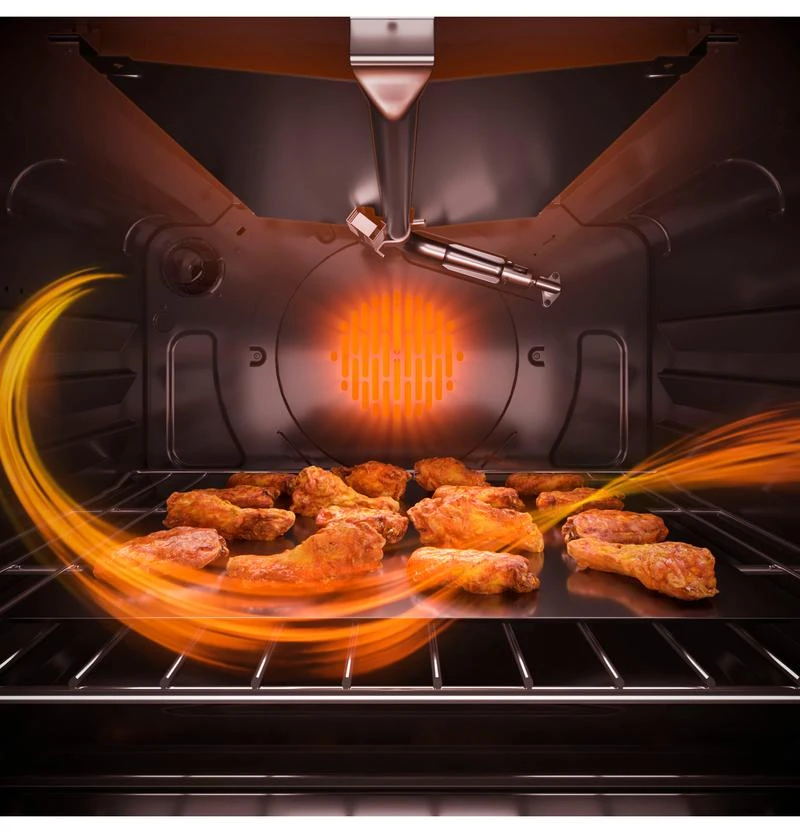

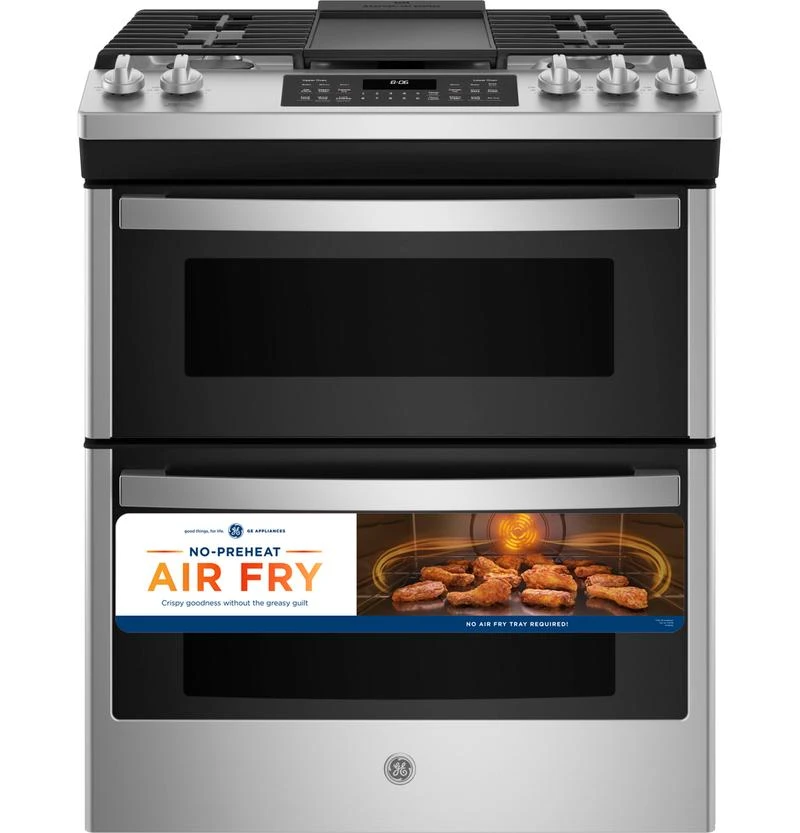

No-Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray

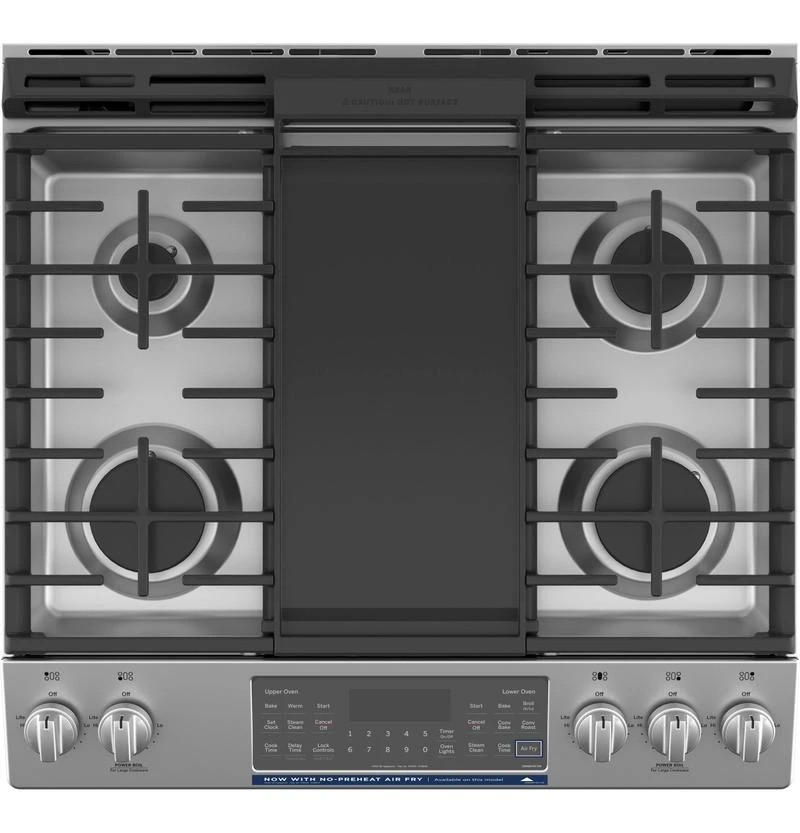

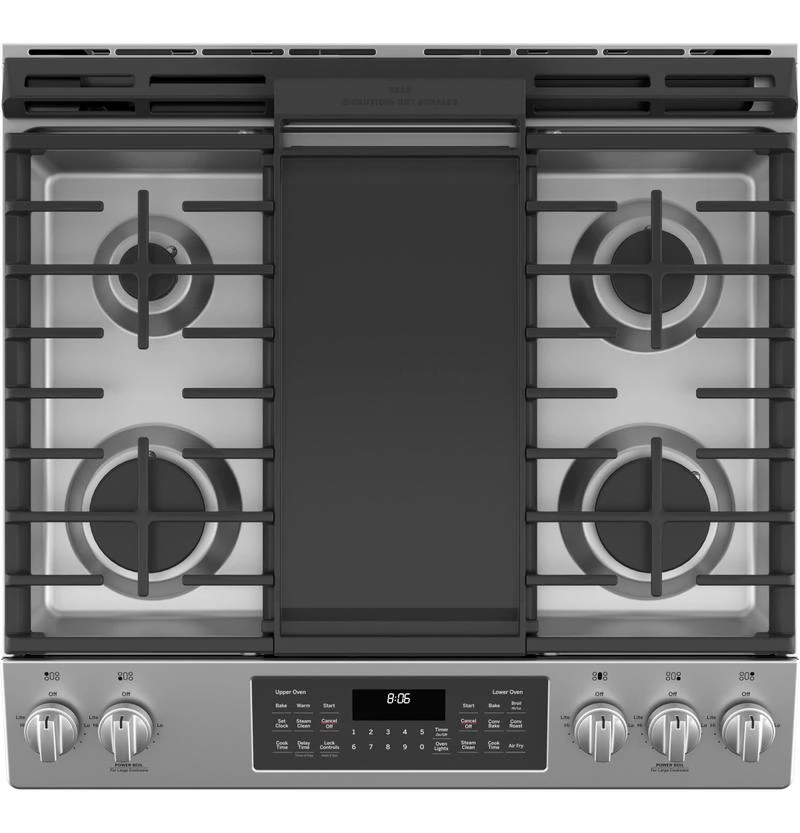

Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Watch Video

Powerful burner options
Cook meals of all sizes thanks to one 18,000-BTU burner for larger cookware and one 15,000-BTU burner for medium-sized pots and pans
Watch Video

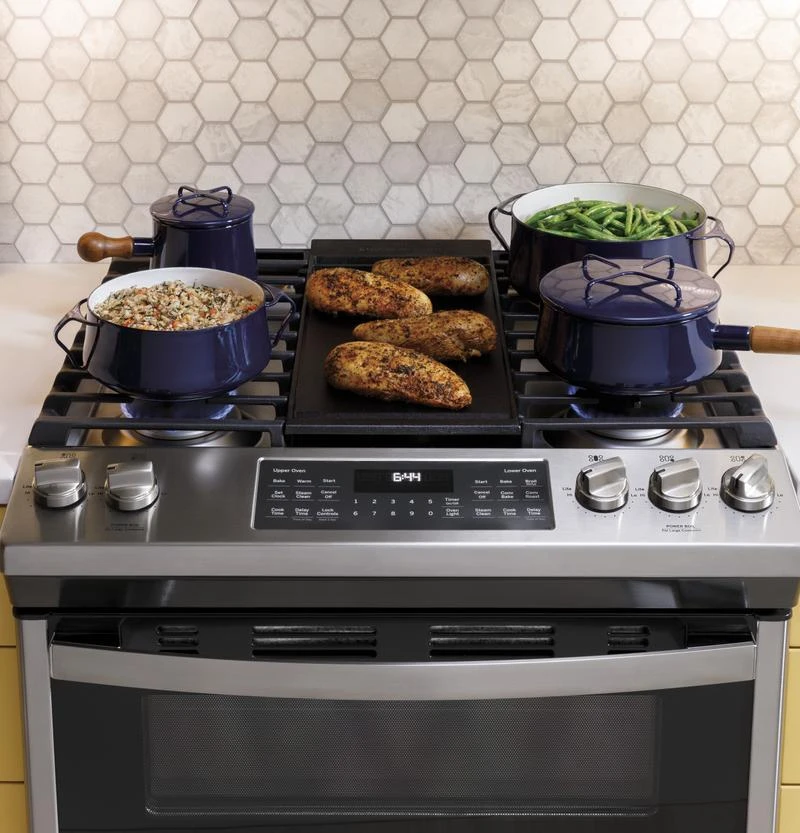

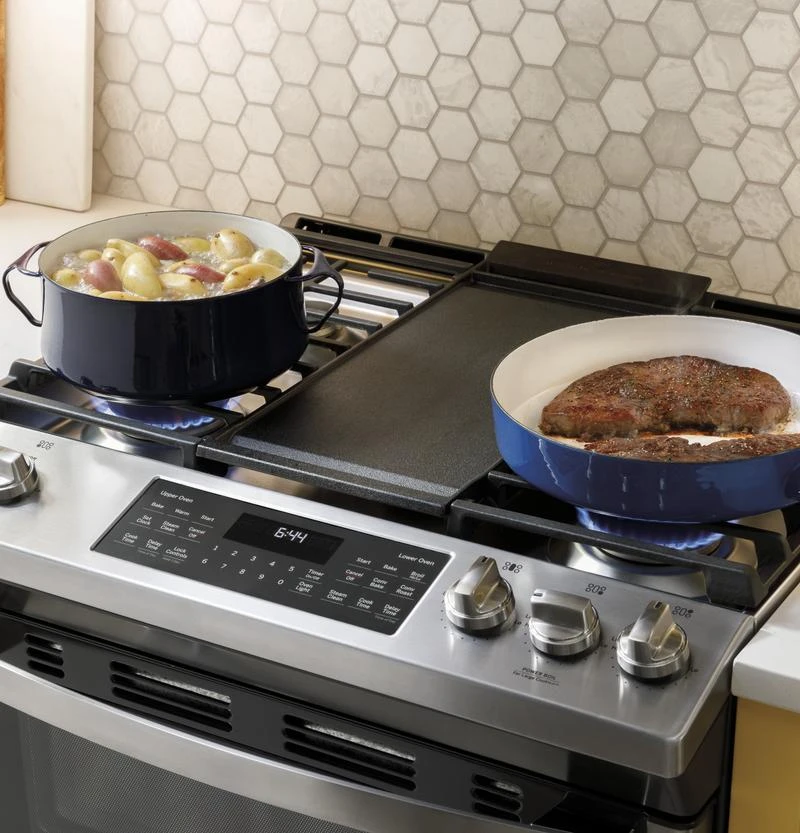

Integrated griddle
This integrated cast iron griddle leads the industry in size and quality, so you can cook a lot of food at once
Watch Video

Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Watch Video

Steam clean
A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
Watch Video

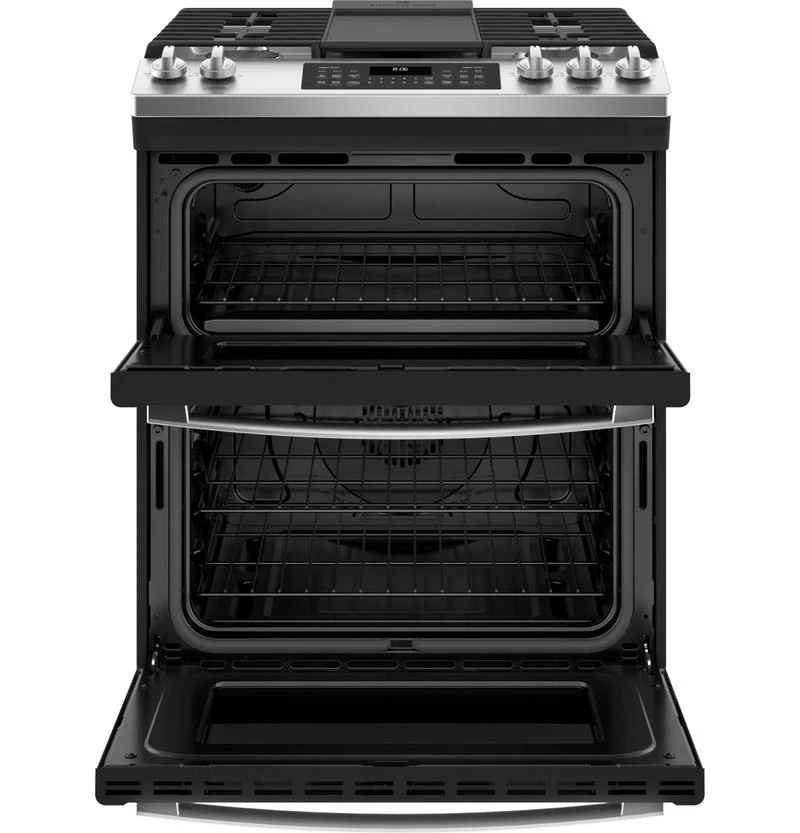

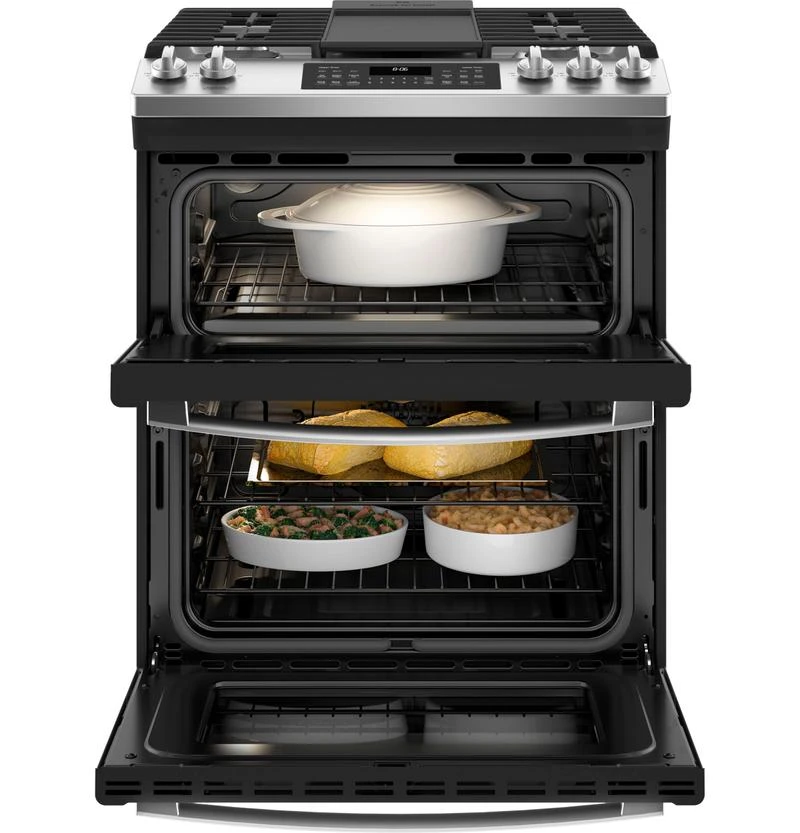

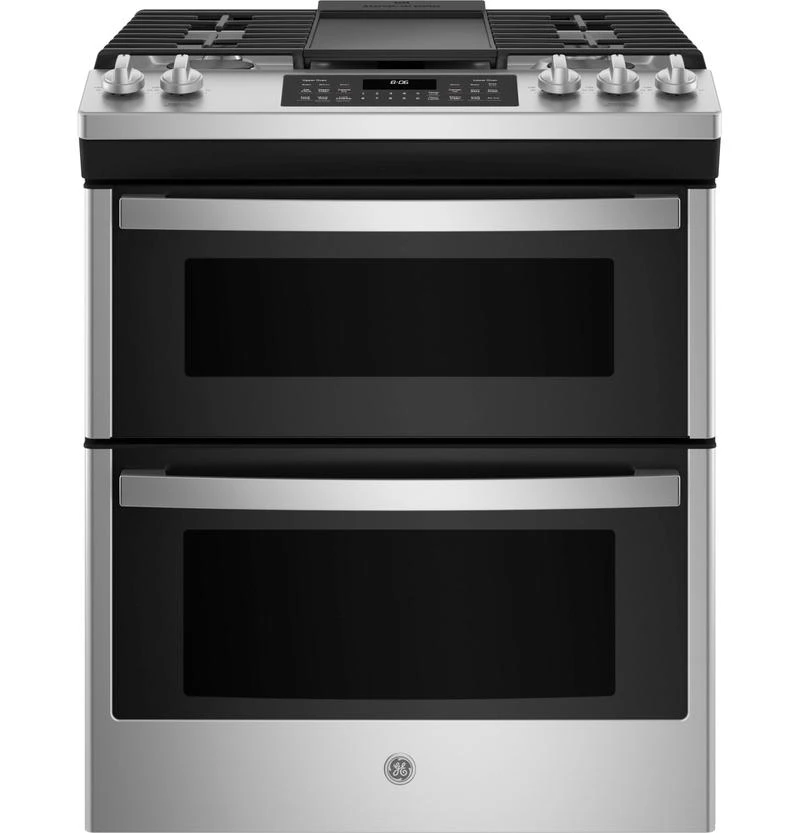

Large capacity double oven
Cook an entire meal at once with a 6.7 cubic foot total capacity double oven which provides enough room for multiple dishes
Watch Video

True Convection
Enjoy consistent baking thanks to an advanced convection system that pairs a third heating element with a rear fan for a high level of precision
Watch Video
Fit Guarantee
This gas range will fit your existing 30″ cut-out, or GE Appliances will help pay for modifications up to $300 See offer criteria and details
No-Preheat Air Fry
Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray
Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Powerful burner options
Cook meals of all sizes thanks to one 18,000-BTU burner for larger cookware and one 15,000-BTU burner for medium-sized pots and pans
Integrated griddle
This integrated cast iron griddle leads the industry in size and quality, so you can cook a lot of food at once
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Steam clean
A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
In-oven broil
An in-oven broiler makes broiler cooking hassle-free
Large capacity double oven
Cook an entire meal at once with a 6.7 cubic foot total capacity double oven which provides enough room for multiple dishes
True Convection
Enjoy consistent baking thanks to an advanced convection system that pairs a third heating element with a rear fan for a high level of precision
Features
- Fit Guarantee
- No-Preheat Air Fry
- Edge-to-edge cooktop
- Powerful burner options
- Integrated griddle
- Center oval burner
- Steam clean
- In-oven broil
- Large capacity double oven
- True Convection
| CAPACITY | |
| Total Capacity (cubic feet) | 6.7 |
| Capacity (Cu. Ft.) | 2.4 Upper / 4.3 Lower |
| FILTER | |
| App Filter – Cabinet Width | Cooking 30 in. (Standard) |
| App Filter – Control Type | Electronic touchpad |
| App Filter – Product Type | Ranges Slide-In Double Oven |
| App Filter – Fuel Type | Gas |
| App Filter – Cooking Technology | Traditional |
| App Filter – Convection | No |
| App Filter – Edge-to-Edge Cooktop | Yes |
| App Filter – Cleaning Type | Steam and Manual |
| App Filter – Voltage | 120V |
| App Filter – Cooktop Type | Continuous Grates |
| APPEARANCE | |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style Stainless Steel |
| Installation | Flush Appearance Free-standing cut-out |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Stainless Steel |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating – Nat. Gas (000’s BTU’s) | (1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating – LP (000’s BTU’s) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating – Nat. Gas (000’s BTU’s) | 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower) |
| Bake/Broiler BTU Rating – LP (000’s BTU’s) | 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower) |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Optional Accessories | WB48X21543 Roller Rack |
| Center Grate | Optional – JXGRATE1 |
| Griddle Accessory | WB31X28254 (Included) Cast Iron |
| LP Conversion Kit | Included |
| Trim Kit | JXFILLR1DD Optional |

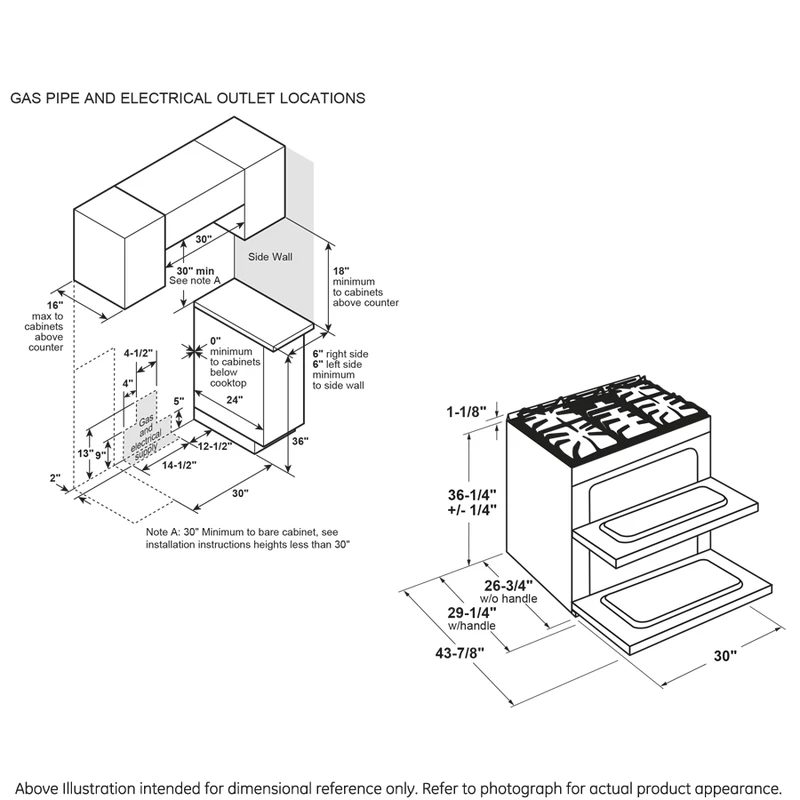

| WEIGHTS & DIMENSIONS | |
| Net Weight | 271 |
| Depth Without Handle | 26.75 |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Cabinet Width | 30 |
| Approximate Shipping Weight | 291 |
| Overall Width | 30 |
| Overall Height | 36.25 |
| Height to Top of Rear Vent Trim | 37.375 |
| Overall Depth | 29.25 |
| Depth with Door Open | 43.875 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 – Upper; 24 x 15 x 20-5/8 – Lower |
| FEATURES | |
| Ignition System | Electronic |
| Burner – Right Rear | 9,500 BTU |
| Oven Interior | 1 Auto Incandescent Light Gray |
| Oven Control Features | Audible Preheat Signal Certified Sabbath Mode Control Lock Capability Electronic Clock & Kitchen Timer Steam Clean |
| Oven Rack Features | 3 Oven Racks |
| Burner – Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Steam Clean |
| Griddle | Cast Iron Griddle |
| Product Type | Slide-In Double Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas (factory set) |
| Burner – Center | 10,000 BTU Oval |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Control Type | Electronic Touch |
| Burner – Left Front | 18,000 BTU Power Boil |
| Sabbath Mode | Yes |
| Cooking Technology | Traditional Upper; Convection Lower |
| Configuration | Double Oven Range |
| OU Certified | No |
| Oven Cooking Modes | No Preheat Air Fry |
| Cooktop Burner Type | Sealed |
| Grill | JXCGRILL1 Optional |
| Burner – Right Front | 15,000 BTU |
| Cooktop Surface | Deep Recessed Edge-to-Edge Stainless Steel |
Quick Specs
-
Appearance
-
Type:
Range
-
Style:
Slide In
-
Fuel:
Gas
-
Dimensions
-
Width:
30″
-
Height:
36.25″
-
Depth:
29.25″
-
Size
-
Nominal Width:
30″
-
Features
-
Energy Star Rated:
No
-
Downdraft Ventilation:
No
-
Hood Recommended:
Yes
-
Cooktop Features
-
Dual Fuel:
No
-
Burner Type:
Sealed
-
Oven Features
-
Self Clean:
No
-
Convection:
Yes
-
First Oven:
2.4 cu. ft.
-
Hidden Bake Element:
No
-
Continuous Grate:
Yes
-
Extras
-
Sabbath Mode:
Yes
-
WiFi Connected:
No
